FieldForce Mobile App Design

Governing ADRs

This design is governed by the mobile ADR set; read them before generating code. Conventions not warranting an ADR (UTC-always, commit generated files, config injection, Brand-wrapper rule, codegen discipline, UUIDv7 keys) live in the workspace CLAUDE.md.

Scope & Goals

FieldForce is an offline-first mobile app for field workers who operate in low- or no-connectivity environments. It behaves like a fully local app that transparently syncs to the Gremlin backend when connectivity allows, and stays useful when it does not. The MVP proves three behaviors:

• Offline-first work: a worker can view assigned Tasks, create and edit Task records, and complete Tasks with no connectivity, and have that work sync automatically on reconnect with no data loss.
• Realtime updates: when connected, assignments and changes pushed from the backend appear without manual refresh or interval polling.
• Background location (shift-scoped): while on-the-clock and with consent, the app reports location to the backend, gated behind a remote feature flag.

Success criteria

• A field worker can complete a full Task cycle (view → start → update → submit) entirely offline, and the work syncs correctly on reconnect.
• Connected devices receive backend-driven updates in realtime without polling.
• Offline-created records carry stable IDs (UUIDv7) generated on-device before the server sees them.
• Conflicting edits resolve server-authoritatively without losing or duplicating data.
• Background location runs only when feature flag + OS permission + shift state are all satisfied, and stops cleanly when any is revoked.
• The app feels native per platform (iOS/Android) while carrying a consistent Gremlin brand.
• Crashes and errors are observable remotely (Crashlytics) without needing to reproduce the worker's device state.

Out of scope for MVP

• A separate mobile backend or a second source of truth on-device.
• Hand-built offline-sync, conflict resolution, or schema-migration machinery (PowerSync owns this — ADR-0040).
• Live ephemeral realtime signals (presence, typing, live status) — deferred until a concrete need appears.
• Full analytics taxonomy — only a typed event interface when analytics work begins.
• Shorebird / OTA Dart code push — available later, not MVP.
• Building shared feature_* packages before a second app needs them.
• Digital Worker functionality (separate app; shares core_* only).

Approach Selected

Several cross-platform and native approaches were considered for a vibe-coded, offline-first, realtime field app on a TypeScript-adjacent Go backend (full rationale in ADR-0037).

The selected design keeps all identity, write authority, and business logic in the Go backend, with the Flutter app as an offline-first client. PowerSync is a thin, replaceable data-sync boundary; the Go backend owns truth. Each core_* package is a clean, inward-pointing boundary mirroring the backend's hexagonal architecture (ADR-0038, ADR-0039).

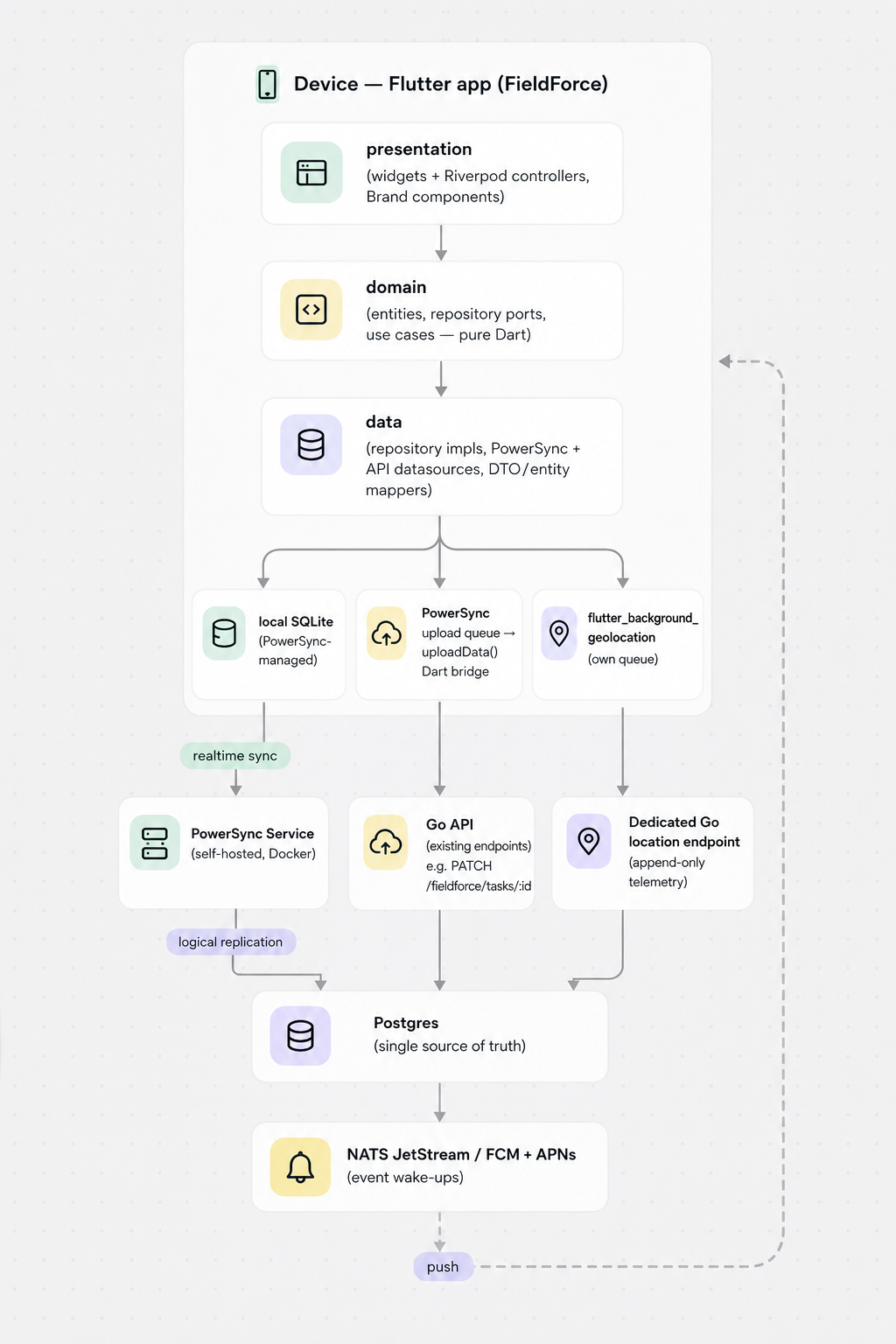

Architecture

flowchart TB
    subgraph device["Device — Flutter app (FieldForce)"]
        pres["presentation (widgets + Riverpod controllers, Brand components)"]
        dom["domain (entities, repository ports, use cases — pure Dart)"]
        data["data (repository impls, PowerSync + API datasources, DTO/entity mappers)"]
        sqlite["local SQLite (PowerSync-managed)"]
        queue["PowerSync upload queue → uploadData() Dart bridge"]
        geo["flutter_background_geolocation (own queue)"]
        pres --> dom --> data
        data --> sqlite
        data --> queue
        data --> geo
    end
    ps["PowerSync Service (self-hosted, Docker)"]
    api["Go API (existing endpoints) e.g. PATCH /fieldforce/tasks/:id"]
    locep["Dedicated Go location endpoint (append-only telemetry)"]
    pg["Postgres (single source of truth)"]
    wake["NATS JetStream / FCM + APNs (event wake-ups)"]
    sqlite <-->|realtime sync| ps
    queue --> api
    geo --> locep
    ps <-->|logical replication| pg
    api --> pg
    locep --> pg
    pg --> wake
    wake -.push.-> device


Heterogeneous data paths

The key consequence of going offline-first + location: not all data flows through the same pipe.

The otherwise-uniform PowerSync model holds for interactive data, but location telemetry is the exception — high-volume append-only pings route around PowerSync to avoid bloating buckets past their sweet spot (ADR-0040).

Package ownership

The Flutter workspace owns (in core_* packages):

core_models

domain entities, Result/AppFailure types (pure Dart, zero deps)

core_network

API client + DTOs

core_auth

JWT/session + verified-identity

core_database

PowerSync schema + sync wiring

core_ui

Brand UI components + theme

core_i18n

slang i18n infrastructure

core_notifications

FCM/APNs + deep-link routing + sync-on-push (ADR-0044)

core_location

background location capability (FieldForce-only)

The Go backend owns everything authoritative: identity, write authority, conflict resolution, Sync Rules / bucket scoping, the uploadData() target endpoint, the location telemetry endpoint, and all business logic.

Roadmap

1. Phase 1 — Offline-First MVP

   Offline-first work cycle over PowerSync, realtime when connected, verified-account gate, brand UI, crash reporting. Background location behind a feature flag. Includes the backend work to make location safe: build ff_shifts (or equivalent Shift entity), clock-in/clock-out APIs, sync active Shift to mobile, Shift in Sync Rules + tests. Production location stays off until Shift exists, syncs, and passes three-gate tests.

2. Phase 2 — Push & Notifications Hardening

   Full FCM/APNs path across foreground/background/killed, silent pre-sync pushes, deep-link routing from notifications, approver/assignment notifications.

3. Phase 3 — Location & Telemetry Maturity

   OEM battery-optimization handling, shift-scoped consent flows, geofencing/activity-recognition tuning via flutter_background_geolocation.

4. Phase 4 — Second App (Digital Worker)

   Promote shared features into feature_* packages as Digital Worker (the chat-observer app) reuses them; validate the monorepo sharing model.

5. Phase 5 — OTA & Release Velocity

   Evaluate Shorebird for Dart code push to shorten iterate-and-ship cycles without full store resubmission.

6. Phase 6 — Expanded Field Capabilities

   Richer offline media capture, barcode/BLE device integrations, and advanced sync scoping as data volume grows.

Security & Permissions

• JWT lifecycle: access token 30–60 min, refresh token 7–30 days. Refresh-on-401 interceptor refreshes transparently. The same Go-minted JWT authenticates both the API and PowerSync sync (it drives Sync Rules bucket access).
• JWT source and claims: follow the existing SolidStart / Better Auth pattern. Mobile signs in via the same auth source (POST /api/auth/sign-in-email, refresh via POST /api/auth/refresh; session shape { user, session { token, refreshToken, expiresAt } }). The JWT keeps the standard claims (sub, iss, aud, iat, exp) and custom claims (userId, roles, organizationId, isActive), and adds a source marker platform: "mobile".
• Offline grace: the app remains usable on cached data with an expired access token while the refresh token is valid; hard-lock only when the refresh token expires or refresh is explicitly rejected. "Can reach server" is decoupled from "session still valid."
• Secure storage: tokens live in flutter_secure_storage (Keychain/Keystore-backed) only — never SharedPreferences.
• Verified Gremlin account gate: the security spine, enforced via a centralized go_router redirect guard. For Phase 1, a user is verified when the backend-issued auth state matches the existing SolidStart account model: valid JWT/session, isActive = true, and platform = "mobile". The app may also call GET /api/auth/me to refresh user state. The device never asserts verification locally.
• Sync visibility: MVP must ensure the worker only sees records they are allowed to see. Fine-grained RBAC Sync Rules are not a Phase 1 blocker; start with the simplest safe bucket shape and mobile-side visibility filtering, while keeping Go API writes server-authoritative. Deeper RBAC is a later hardening step.
• Feature-flag kill-switch: the background-location capability is gated by a server-driven flag that doubles as a remote kill-switch (see Background Location).

Data, Sync & Error Model

PowerSync owns offline durability, reconnect-replay, idempotency, and realtime delivery (ADR-0040). The app owns the write contract and error semantics. State and DI are managed by Riverpod (ADR-0042).

• Read path: local SQLite ← PowerSync ← Postgres; reactive queries surface as Stream<List<T>>; UI updates realtime.
• Write path: local write → PowerSync upload queue → uploadData() (Flutter-side bridge) → existing Go API endpoints → Postgres; server-authoritative conflict resolution.

• Operation-to-endpoint map (Phase 1 requirement): must be defined per synced entity before implementation. Known mapping: Task creates/updates route through the event-based PATCH API (ADR-0013), preserving state-machine validation server-side. New entities (e.g. Shift clock-in/clock-out) require new Go endpoints, added only as each entity is introduced.
• Task status conflicts: ADR-0013's server-side Task state machine is the conflict resolver for Task status transitions — not last-write-wins. LWW may apply to non-status fields only. If a queued offline Task event is rejected by the Go API as an invalid transition, uploadData() must surface a typed AppFailure to the presentation layer rather than silently dropping it.
• IDs: UUIDv7 client-generated, identical key type in Postgres and client SQLite.
• Migrations: none hand-written client-side — PowerSync syncs schemaless and projects schema as SQLite views. Evolve via schema definition + Sync Rules. Data transformation logic stays in the Go backend.
• All local state in PowerSync — no separate Drift/sqflite DB unless explicitly justified.

Error handling — sealed Result<T> + AppFailure

In core_models (ADR-0045):

• Repositories return Result<T> for operations that can meaningfully fail.
• Exceptions are caught and mapped to typed AppFailure only at the data-layer boundary; domain and presentation never try/catch or throw, and pattern-match exhaustively.
• Result applies to the write path and non-synced API calls; PowerSync reactive reads surface as Stream, not wrapped where there is no real failure mode.

Background Location (FieldForce only)

core_location package; engine flutter_background_geolocation. Digital Worker does not depend on it. (Full decision in ADR-0043.)

1. Gate 1 — Feature flag

   Both the platform-wide kill-switch (admin_feature_flags) AND the per-org fieldforce.location flag (org_feature_flags, ADR-0016) must be on. Read from a dedicated Go API flags endpoint; cached locally. Unknown = off. Also the remote kill-switch.

2. Gate 2 — OS permission

   "Always" location permission granted by the user.

3. Gate 3 — Shift state

   Worker has an active Shift (ff_shifts or equivalent) in the synced local SQLite. Shift is a server-authoritative entity minted by the Go backend; the mobile gate reads it from PowerSync-synced local SQLite. This entity does not exist in the backend today — it is a Phase 1 backend requirement. Until it is implemented and synced, background location MUST remain feature-flagged off in production.

• Flipping the flag off cleanly tears down the foreground service, stops GPS, and removes the tracking notification — not merely stops uploading.
• Flag values are cached locally and evaluated from cache offline (last-known value; unknown = off, never default-on). The cache is refreshed on auth, app start, and resume.
• Location upload is separate from PowerSync — the engine's own offline queue → a dedicated Go endpoint (append-only telemetry).
• Android requires a foreground service with a visible notification while tracking; iOS requires "Always" permission + location background mode.

UI, Brand & Platform Behavior

• Brand tokens flow through ThemeData + a ThemeExtension (single source of truth in core_ui).
• Brand wrapper components (BrandButton, BrandSwitch, BrandTextField, BrandSelect, BrandDatePicker, …) — app code uses these, never raw Switch/TextField/DropdownButton (Brand-wrapper rule in CLAUDE.md).
• Wrappers apply brand styling to chrome and delegate the interactive primitive to the platform-appropriate widget (Cupertino on iOS, Material on Android) where native muscle-memory matters. All Platform.isIOS branching is centralized inside the wrappers.
• i18n: slang (ADR-0046) — typed dot-notation, no BuildContext; locales EN / ZH (Simplified) / MS; callable from controllers and core_models.
• Time: UTC always for storage/transport; convert at presentation only; server time is authoritative.

Configuration & Observability

• Non-secret config via --dart-define-from-file=config/<flavor>.json. Apps read config at the composition root and inject it into packages; packages never read env directly. True secrets live in Codemagic CI secrets, never the bundle.
• Flavors: dev / staging / prod, with separate bundle IDs and entrypoints.
• Crash reporting: Firebase Crashlytics (Firebase is present for FCM). Remote observability is the primary debugging channel — fix from traces, not device repro.
• Feature flags: use the existing ADR-0016 two-tier flag infrastructure. Mobile reads a lightweight flags endpoint at auth / app start / resume; caches last-known values for offline evaluation. Unknown flag value = off. v1 scope: platform-wide kill-switch (admin_feature_flags) plus per-org fieldforce.location. No per-user/per-role targeting in MVP. Do NOT add org_feature_flags to PowerSync — fetch-and-cache is sufficient.

Crashlytics debug context

Crashlytics captures crashes and supports custom keys/logs, but FieldForce must set its own non-PII debugging metadata. Required keys: app flavor, app version/build number, platform = "mobile", OS name/version, device model, organization ID, user ID hash (never raw email/name/phone), current route/screen, active Task ID, active Shift ID, PowerSync connection state, pending upload queue count, last sync timestamp, location gate states (feature flag / permission / Shift), and relevant feature flags. Update keys on auth, org switch, route change, sync state change, Shift change, and location gate change.

Error Handling

Privacy Boundaries

• Location is shift-scoped and consented — tracked only while on-the-clock, never always-on; the feature flag is a hard remote off-switch.
• Tokens and sensitive data live only in flutter_secure_storage.
• Sync Rules ensure a device syncs only its own user/team subset — no cross-tenant data on-device.
• The tracking foreground-service notification keeps location use visible to the worker while active.
• No employee performance scoring from location or activity in MVP.

Testing (MVP floor)

• Widget tests for critical user flows (offline work cycle, verification gate, brand components).
• Integration tests for the PowerSync upload path and MVP sync visibility (user only sees records they are allowed to see). Fine-grained RBAC Sync Rules are deferred to a later hardening phase.
• Shared core_* packages carry the strictest coverage — they are load-bearing for both apps.
• Location: tests for the three-gate activation and clean teardown on flag-off.
• Observability: tests or smoke checks that Crashlytics custom keys are set after auth, route change, sync state change, Shift change, and location gate change; verify no raw PII is sent as keys or user identifiers.

CI/CD

(See ADR-0047.)

• Codemagic for build, iOS/Android code signing, and store distribution.
• Path-based triggers: a change under apps/fieldforce/** or a packages/* it depends on builds only FieldForce.
• Backend (Go/TS) stays on GitHub Actions.
• Shorebird (Dart code push) deferred to Phase 5.

Open Questions
